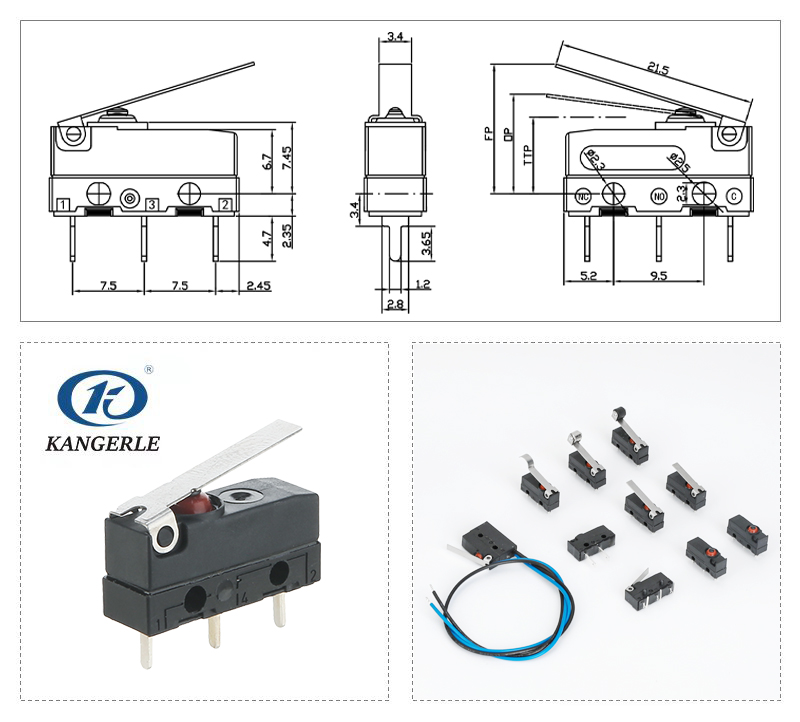

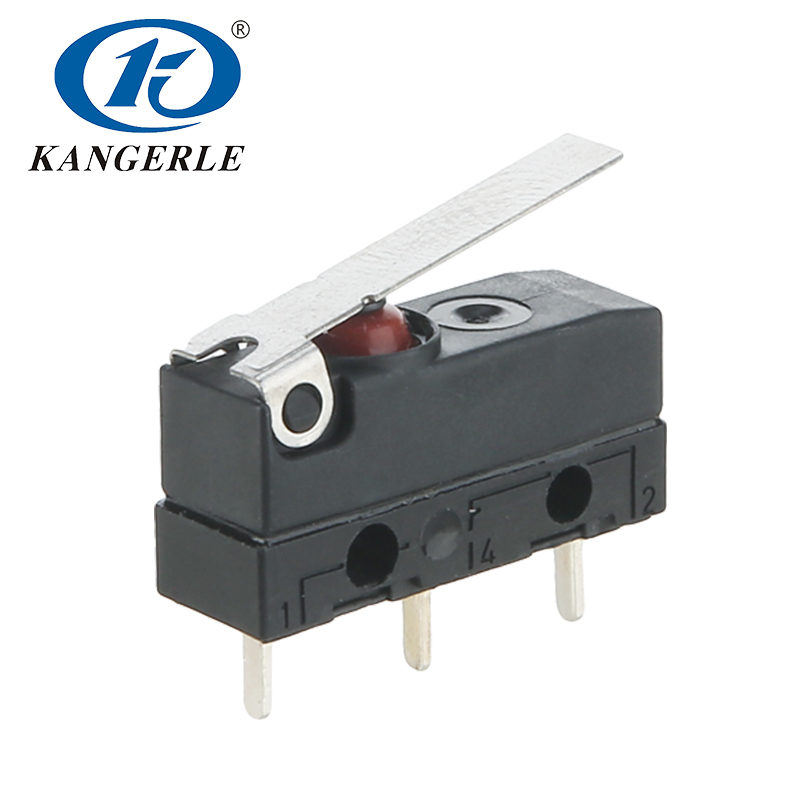

This miniature micro switch WS1-10A-2D is a waterproof switch with 3 PCB terminals and a straight metal lever. It offers IP67 protection degree when wired and also comes in SPST-NO and SPST-NC models. This series supports multiple wiring terminals and lever options.
Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.
This miniature micro switch WS1-10A-2D is a waterproof switch with 3 PCB terminals and a straight metal lever. It offers IP67 protection degree when wired and also comes in SPST-NO and SPST-NC models. This series supports multiple wiring terminals and lever options.
Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.
This miniature micro switch WS1-10A-2D is a waterproof switch with 3 PCB terminals and a straight metal lever. It offers IP67 protection degree when wired and also comes in SPST-NO and SPST-NC models. This series supports multiple wiring terminals and lever options.
Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.
This miniature micro switch WS1-10A-2D is a waterproof switch with 3 PCB terminals and a straight metal lever. It offers IP67 protection degree when wired and also comes in SPST-NO and SPST-NC models. This series supports multiple wiring terminals and lever options.
Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.
| Rated Load | 5/10A 125/250V AC |
| Temperature | 25T125 |
| Operating Force | ≤350gf(regular) |
| Circuit | SPDT/SPST NO/SPST NC |
| Contact Resistance | ≤500mΩ |
| Insulation Resistance | ≥100MΩ（DC500V） |
| Withstand Voltage | ≥100VAC |
| Protection Level | IP67(wiring) |
| Electrical Life | ≥10,000/50,000 cycles |
| Mechanical Life | ≥1,000,000cycles |
| Certification | CQC/CB |
