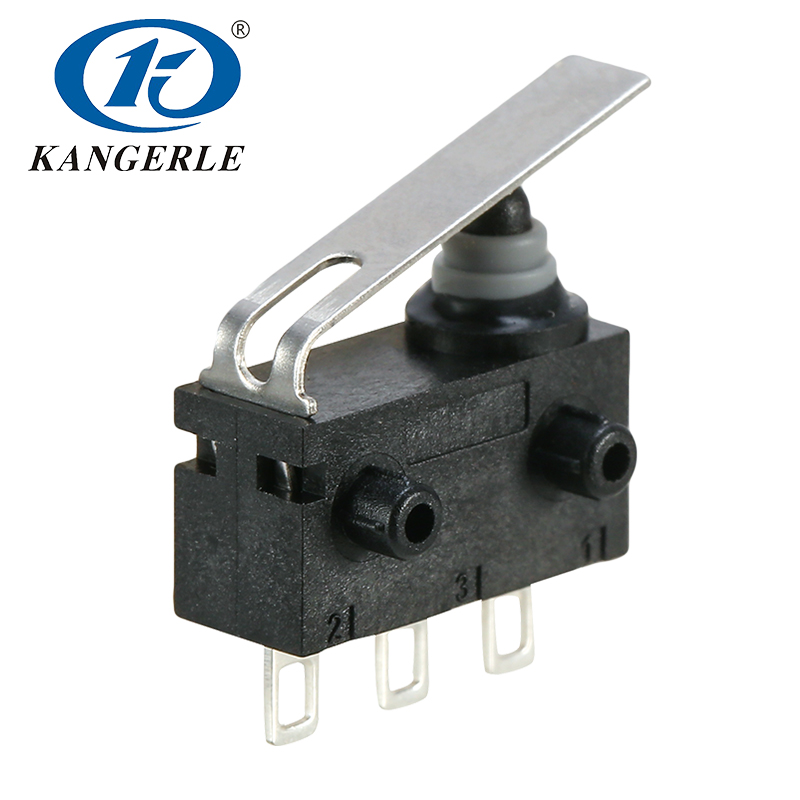

Kangerle sealed KW4-1A-2A-B3 is an SPDT micro switch with a waterproof function, which has a compact structure and a light weight. It can change the the situation of the circuit with a quick and sensitive operation. KW4 series is equipped with many kinds of terminals, levers, and different types of posts. It has a strong sealing performance, which can reach the IP67 waterproof and dustproof protection after wiring.
Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.
Kangerle sealed KW4-1A-2A-B3 is an SPDT micro switch with a waterproof function, which has a compact structure and a light weight. It can change the the situation of the circuit with a quick and sensitive operation. KW4 series is equipped with many kinds of terminals, levers, and different types of posts. It has a strong sealing performance, which can reach the IP67 waterproof and dustproof protection after wiring.
Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.
Kangerle sealed KW4-1A-2A-B3 is an SPDT micro switch with a waterproof function, which has a compact structure and a light weight. It can change the the situation of the circuit with a quick and sensitive operation. KW4 series is equipped with many kinds of terminals, levers, and different types of posts. It has a strong sealing performance, which can reach the IP67 waterproof and dustproof protection after wiring.
Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.
Kangerle sealed KW4-1A-2A-B3 is an SPDT micro switch with a waterproof function, which has a compact structure and a light weight. It can change the the situation of the circuit with a quick and sensitive operation. KW4 series is equipped with many kinds of terminals, levers, and different types of posts. It has a strong sealing performance, which can reach the IP67 waterproof and dustproof protection after wiring.
Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.
| Rated Load | DC12V 0.1A |
| Temperature | -10~60℃ |
| Operating Force | ≤150gf (regular) |
| Circuit | SPDT/SPST NO/SPST NC |
| Contact Resistance | ≤500mΩ |
| Insulation Resistance | ≥100MΩ（DC500V） |
| Withstand Voltage | ≥100VAC |
| Protection Level | IP67(wiring) |
| Electrical Life | ≥100,000 cycles |
| Mechanical Life | ≥300,000cycles |
