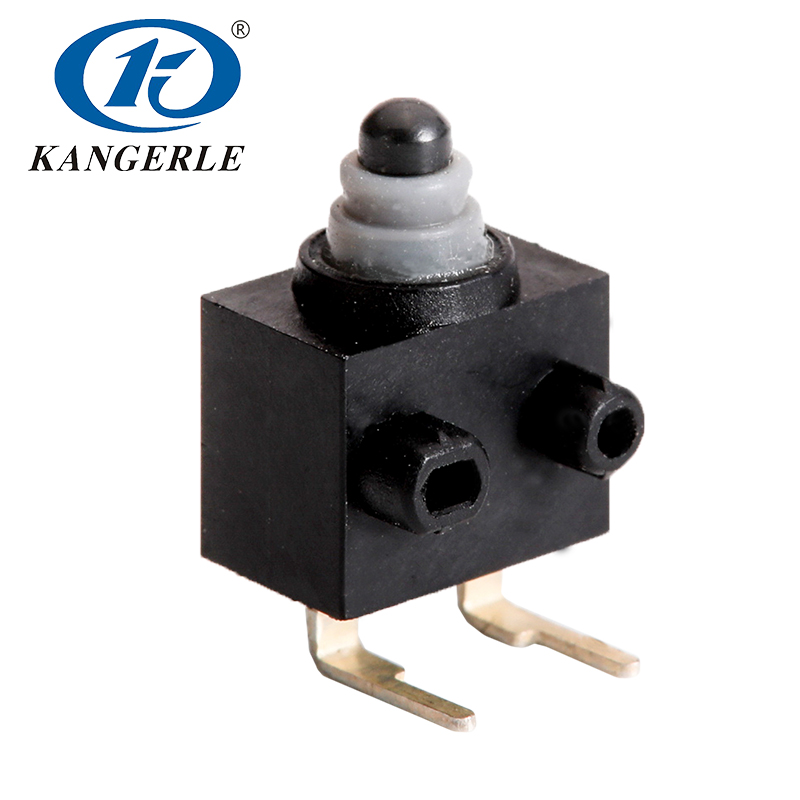

Subminiature Selad Micro Switch SPST 2 Pin Normally Open

The Kangerle ultra small waterproof micro switch KW1-1C-5F features a compact design and IP67 rating after wiring, ensuring excellent water and dust resistance. Available in SPST-NC, SPST-NO models, it offers diverse terminal and lever options for versatile applications.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Subminiature Selad Micro Switch SPST 2 Pin Normally Open

The Kangerle ultra small waterproof micro switch KW1-1C-5F features a compact design and IP67 rating after wiring, ensuring excellent water and dust resistance. Available in SPST-NC, SPST-NO models, it offers diverse terminal and lever options for versatile applications.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Subminiature Selad Micro Switch SPST 2 Pin Normally Open

The Kangerle ultra small waterproof micro switch KW1-1C-5F features a compact design and IP67 rating after wiring, ensuring excellent water and dust resistance. Available in SPST-NC, SPST-NO models, it offers diverse terminal and lever options for versatile applications.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Subminiature Selad Micro Switch SPST 2 Pin Normally Open

The Kangerle ultra small waterproof micro switch KW1-1C-5F features a compact design and IP67 rating after wiring, ensuring excellent water and dust resistance. Available in SPST-NC, SPST-NO models, it offers diverse terminal and lever options for versatile applications.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

PRODUCT DETAIL

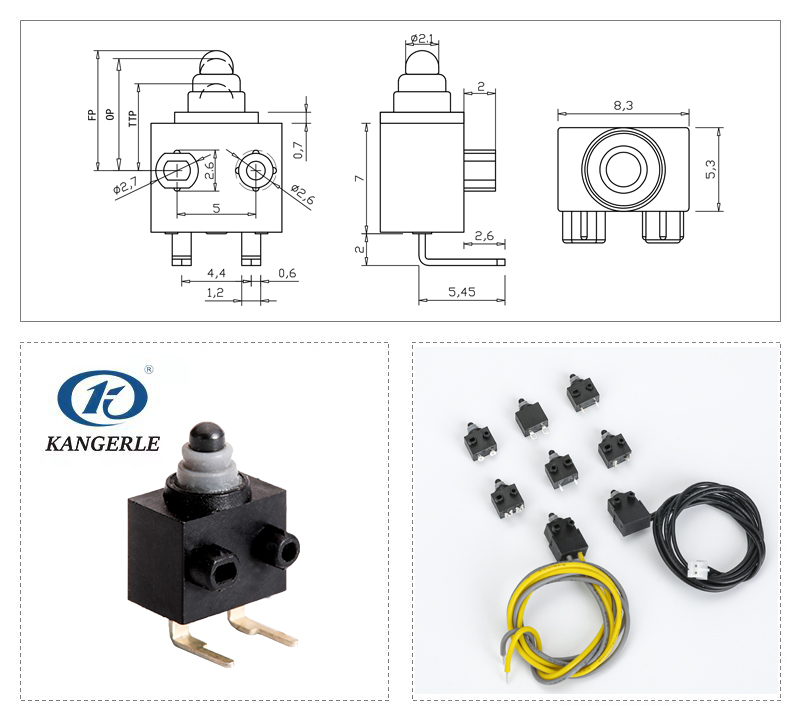

Subminiature Selad Micro Switch SPST 2 Pin Normally Open插图

Rated Load DC12V 0.1A
Temperature -10~60℃
Operating Force 120±30gf (regular)/ 200±30gf
Circuit SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥300,000cycles
Certification RoHS
