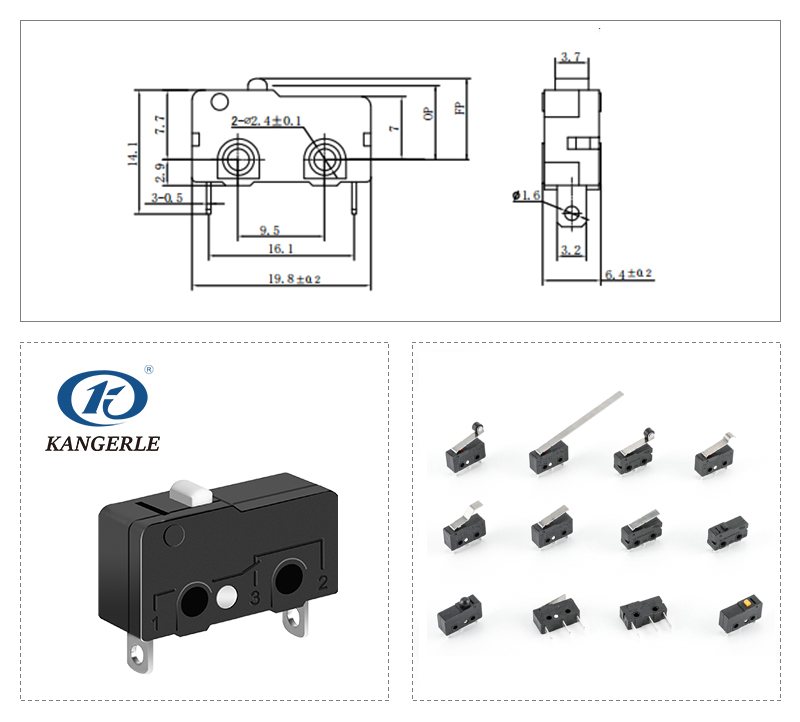

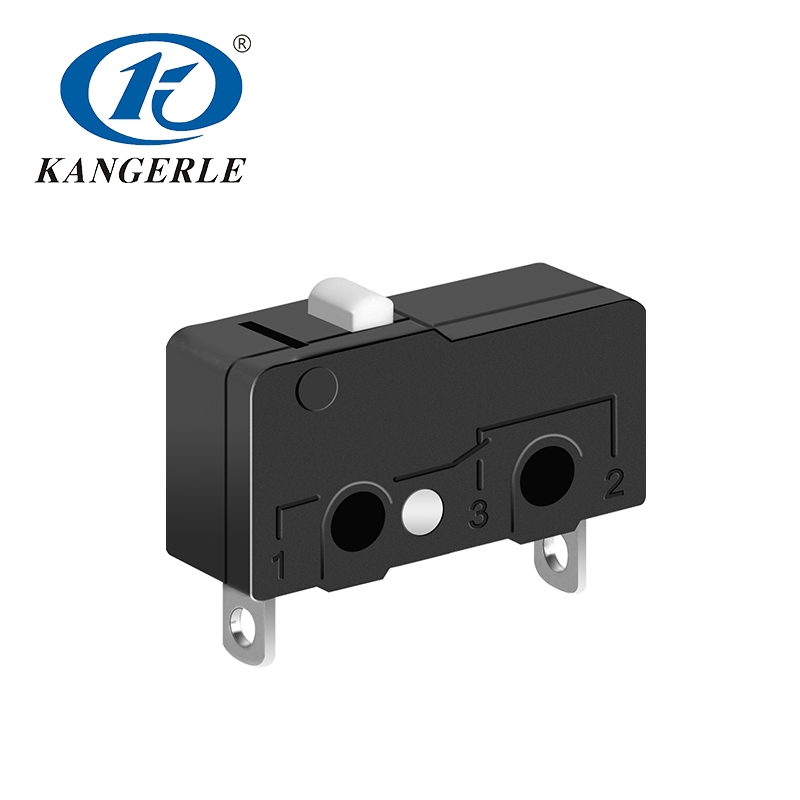

The KW12-10B-F micro switch is a durable, normally closed (NC) 2-pin push-button switch with a spring-loaded mechanism, designed for precision and reliability. With an extended electrical and mechanical lifespan, it is certified by TUV and UL, and complies with ROHS environmental standards, ensuring safety and eco-friendliness. This versatile switch is ideal for applications such as electric massage chairs, where it provides accurate control over motor operations. Customization options include various terminals, contacts, and actuator levers, making it a flexible solution for diverse industrial and consumer electronics needs.
Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
The KW12-10B-F micro switch is a durable, normally closed (NC) 2-pin push-button switch with a spring-loaded mechanism, designed for precision and reliability. With an extended electrical and mechanical lifespan, it is certified by TUV and UL, and complies with ROHS environmental standards, ensuring safety and eco-friendliness. This versatile switch is ideal for applications such as electric massage chairs, where it provides accurate control over motor operations. Customization options include various terminals, contacts, and actuator levers, making it a flexible solution for diverse industrial and consumer electronics needs.
Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
The KW12-10B-F micro switch is a durable, normally closed (NC) 2-pin push-button switch with a spring-loaded mechanism, designed for precision and reliability. With an extended electrical and mechanical lifespan, it is certified by TUV and UL, and complies with ROHS environmental standards, ensuring safety and eco-friendliness. This versatile switch is ideal for applications such as electric massage chairs, where it provides accurate control over motor operations. Customization options include various terminals, contacts, and actuator levers, making it a flexible solution for diverse industrial and consumer electronics needs.
Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
The KW12-10B-F micro switch is a durable, normally closed (NC) 2-pin push-button switch with a spring-loaded mechanism, designed for precision and reliability. With an extended electrical and mechanical lifespan, it is certified by TUV and UL, and complies with ROHS environmental standards, ensuring safety and eco-friendliness. This versatile switch is ideal for applications such as electric massage chairs, where it provides accurate control over motor operations. Customization options include various terminals, contacts, and actuator levers, making it a flexible solution for diverse industrial and consumer electronics needs.
Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
| Rated Load | 0.1-10A 125/250VAC；0.1-5A 36VDC |
| Temperature | 25T125 |
| Operating Force | 170±30gf |
| Terminal Type | solder terminal/110# quick-connect terminal/PCB terminal … |

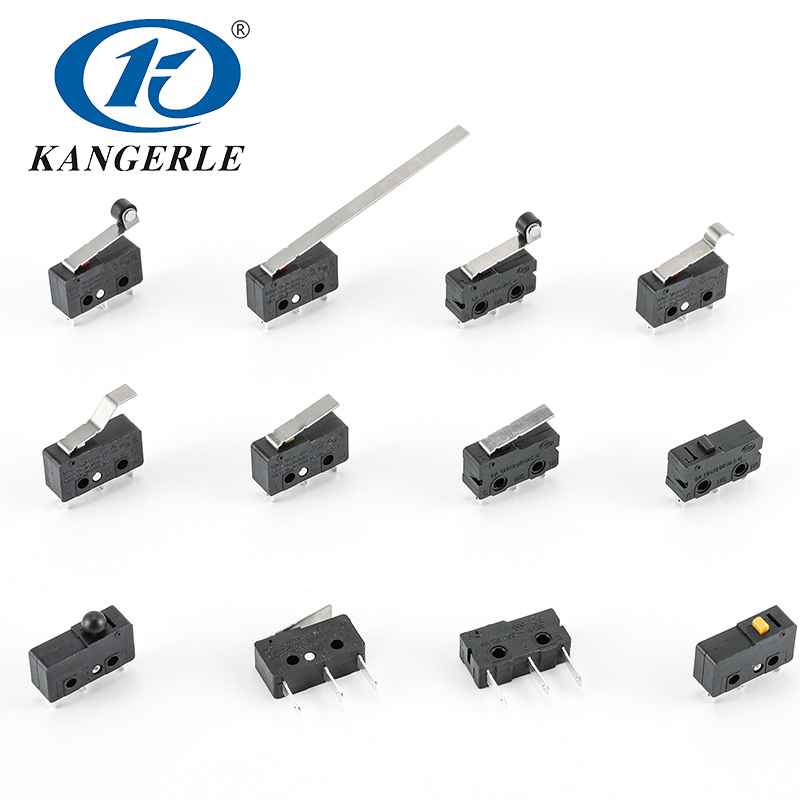

| Lever Type | no lever/short lever/middle lever/long lever/arc lever/roller lever… |
| Circuit | SPDT/SPST NO/SPST NC |
| Operating Speed | 0.1mm-1m/s |
| Operating Frequency | mechanical 60 cycles/min；electrical 15 cycles/min |
| Contact Resistance | ≤50mΩ (initial value) |
| Insulation Resistance | ≥100MΩ(500VDC,1min) |
| Withstand Voltage | ≥1500VAC,50/60HZ,1min |
| Electrical Life | ≥10,000/50,000 times |
| Mechanical Life | ≥1,000,000 times |
| Certification | UL/TUV/CQC/CE |
