Miniature Sealed Micro Switch for New Energy Vehicle Charging Gun

Small compact structure; IP67 dustproof and waterproof production
Integrating the micro switch and resistor into a single component; simplifying both circuit design and installation processes
Integrated design saves space, reducing the number of components, suitable for applications with limited space
Multiple options for resistance value of the built-in resistor

Product Series: IP67 Micro Switch KW5
Application: New energy vehicle charging gun

Miniature Sealed Micro Switch for New Energy Vehicle Charging Gun

Small compact structure; IP67 dustproof and waterproof production
Integrating the micro switch and resistor into a single component; simplifying both circuit design and installation processes
Integrated design saves space, reducing the number of components, suitable for applications with limited space
Multiple options for resistance value of the built-in resistor

Product Series: IP67 Micro Switch KW5
Application: New energy vehicle charging gun

Miniature Sealed Micro Switch for New Energy Vehicle Charging Gun

Small compact structure; IP67 dustproof and waterproof production
Integrating the micro switch and resistor into a single component; simplifying both circuit design and installation processes
Integrated design saves space, reducing the number of components, suitable for applications with limited space
Multiple options for resistance value of the built-in resistor

Product Series: IP67 Micro Switch KW5
Application: New energy vehicle charging gun

Miniature Sealed Micro Switch for New Energy Vehicle Charging Gun

Small compact structure; IP67 dustproof and waterproof production
Integrating the micro switch and resistor into a single component; simplifying both circuit design and installation processes
Integrated design saves space, reducing the number of components, suitable for applications with limited space
Multiple options for resistance value of the built-in resistor

Product Series: IP67 Micro Switch KW5
Application: New energy vehicle charging gun

PRODUCT DETAIL

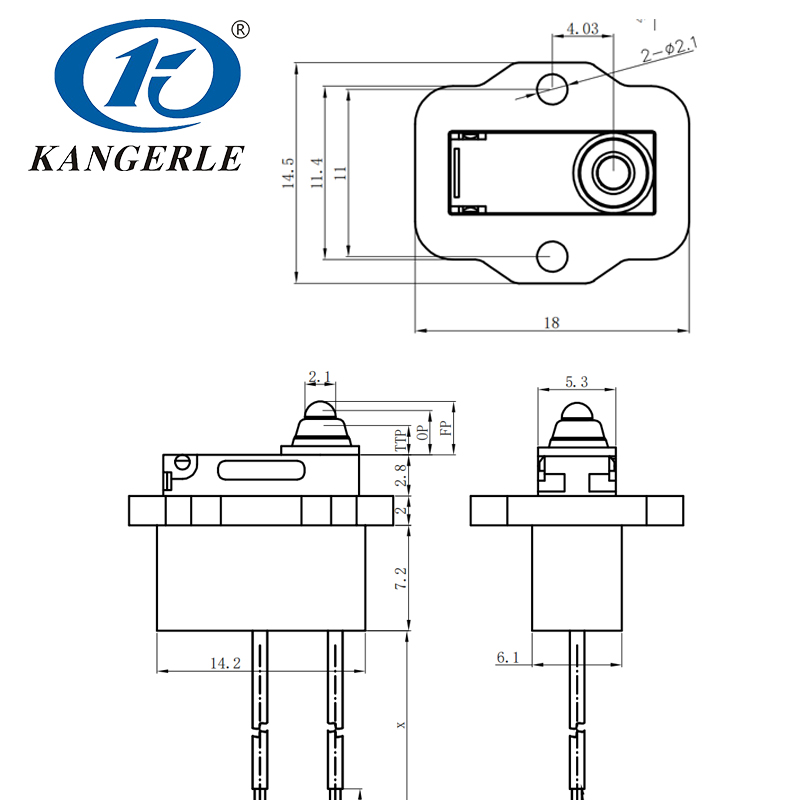

Chinakel KW5 Waterproof Micro Switch Feature

Rated Load	0.1A 125/250V AC; 3A 12V DC
Temperature	40T85
Operating Force	≤150gf（regular）
Circuit	SPDT/SPST NO/SPST NC
Contact Resistance	≤500mΩ
Insulation Resistance	≥100MΩ（DC500V）
Withstand Voltage	100V AC（50～60Hz)/1Min
Protection Level	IP67(wiring)
Electrical Life	≥100,000 cycles
Mechanical Life	≥500,000cycles
