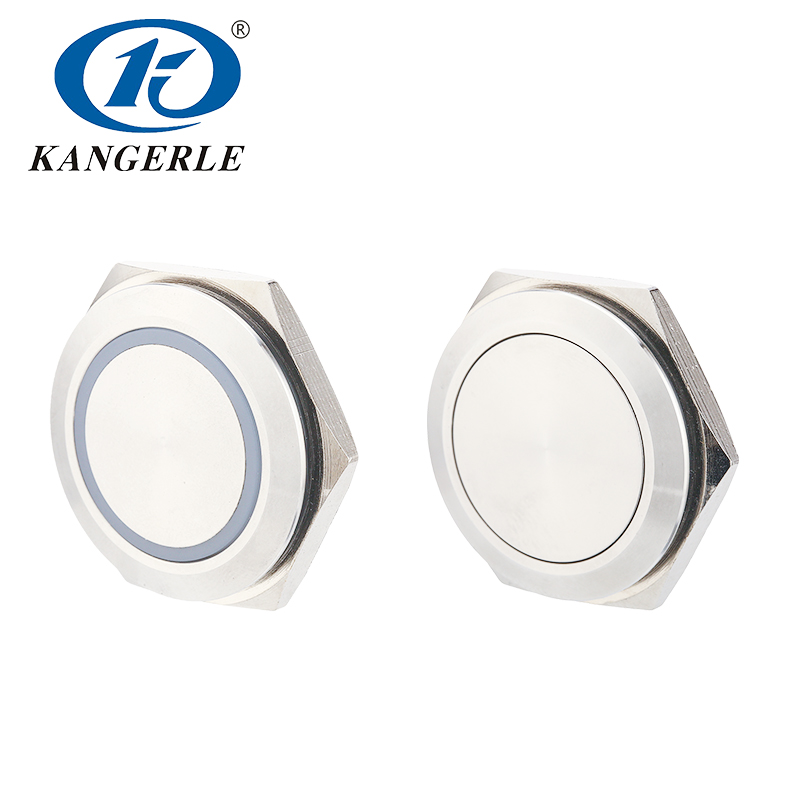

This 30mm slim metal push button switch offers a compact design with a length of only 13.8mm, making it ideal for applications where space is limited. It comes with both momentary (self-resetting) and latching (self-locking) operation types, providing versatility to suit different needs. The button head is available in both flat and raised styles, with a wide range of illumination colors to choose from. Due to its sleek appearance and customizable options, this switch is perfect for a variety of industrial, automotive, and consumer electronic applications.
Product Series: Metal Push Button Switch 30MM
Application: Home appliances, industrial control equipment, power equipment, communication equipment, medical devices, military equipment, automotive electronics, etc,.
This 30mm slim metal push button switch offers a compact design with a length of only 13.8mm, making it ideal for applications where space is limited. It comes with both momentary (self-resetting) and latching (self-locking) operation types, providing versatility to suit different needs. The button head is available in both flat and raised styles, with a wide range of illumination colors to choose from. Due to its sleek appearance and customizable options, this switch is perfect for a variety of industrial, automotive, and consumer electronic applications.
Product Series: Metal Push Button Switch 30MM
Application: Home appliances, industrial control equipment, power equipment, communication equipment, medical devices, military equipment, automotive electronics, etc,.
This 30mm slim metal push button switch offers a compact design with a length of only 13.8mm, making it ideal for applications where space is limited. It comes with both momentary (self-resetting) and latching (self-locking) operation types, providing versatility to suit different needs. The button head is available in both flat and raised styles, with a wide range of illumination colors to choose from. Due to its sleek appearance and customizable options, this switch is perfect for a variety of industrial, automotive, and consumer electronic applications.
Product Series: Metal Push Button Switch 30MM
Application: Home appliances, industrial control equipment, power equipment, communication equipment, medical devices, military equipment, automotive electronics, etc,.
This 30mm slim metal push button switch offers a compact design with a length of only 13.8mm, making it ideal for applications where space is limited. It comes with both momentary (self-resetting) and latching (self-locking) operation types, providing versatility to suit different needs. The button head is available in both flat and raised styles, with a wide range of illumination colors to choose from. Due to its sleek appearance and customizable options, this switch is perfect for a variety of industrial, automotive, and consumer electronic applications.
Product Series: Metal Push Button Switch 30MM
Application: Home appliances, industrial control equipment, power equipment, communication equipment, medical devices, military equipment, automotive electronics, etc,.
| Rated Load | 5A 110V AC |
| Temperature（℃） | -20～55℃ |
| Operating Force | 1NO 3.5N/2NO 4.5N |
| Function | Momentary/ Latching |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥1000MΩ |
| Withstand Voltage | 1500V AC |
| Protection Level | IP67 |
| Electrical Life （cycles） | ≤30,000 cycles |
| Mechanical Life （cycles） | ≤2000,000 cycles |
| Led Voltage | AC / DC 3 – 6V; AC/DC 12-24V ; AC 220V |
| Led Color | R/G/B/Y/W/O/P/RG/RB |
| Certification | RoHS /CE /CCC |
