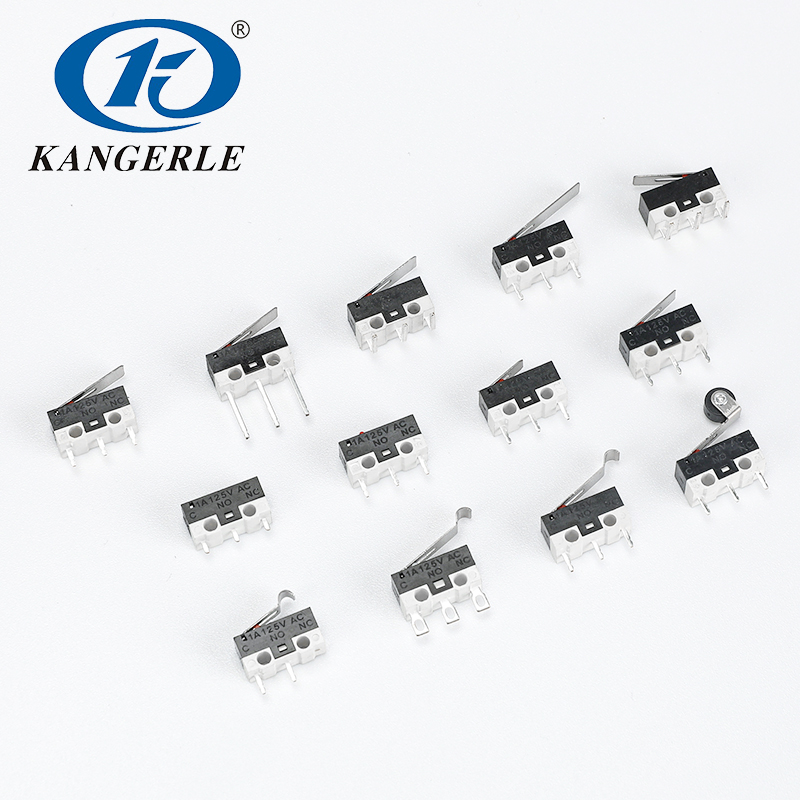

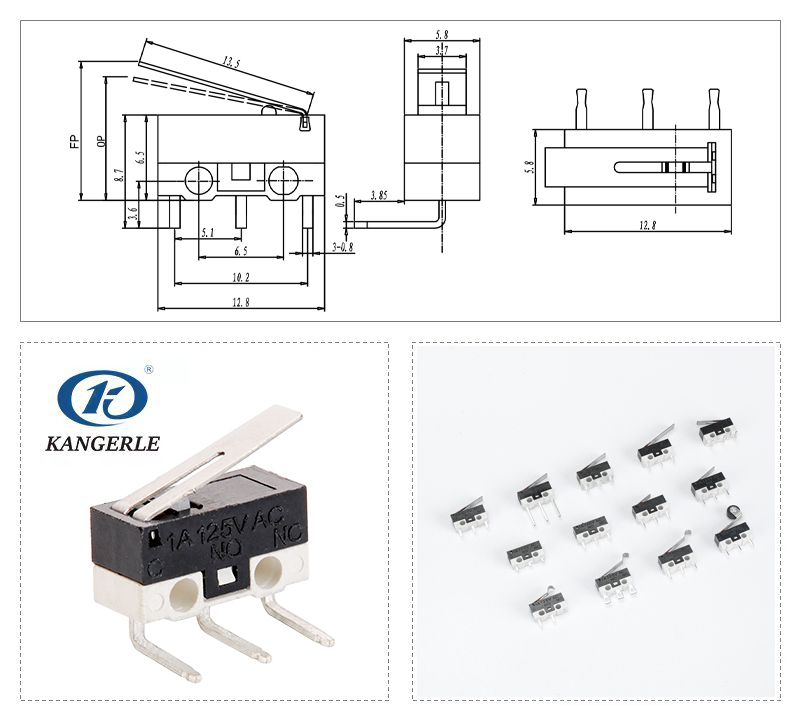

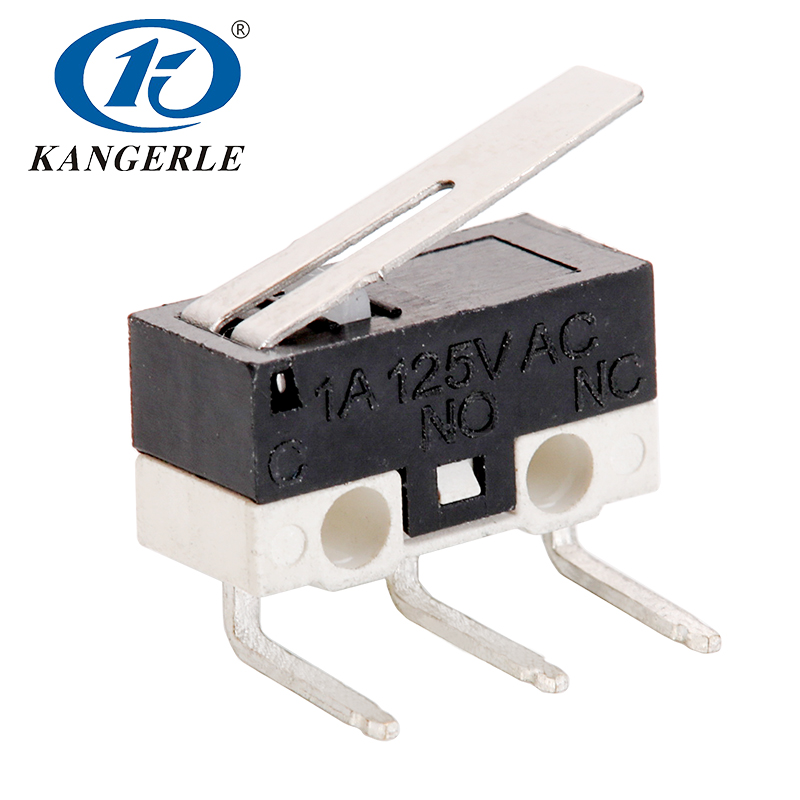

Micro switch KW10 is small in size and compact in structure, which is a miniature micro switch. It has a micro contact gap and a tiny operation travel, and can realize the on-off situation of the circuit with high sensitivity. KW10 micro switch has three types of circuit codes: SPDT type, SPST-NO type, and SPST-NC type. It is also equipped with a wide range of wiring terminals and a variety of levers. Stable quality and long electrical life make it applied in many fields.
Product Series: KW10 Micro Switch
Appliction: ETC, mouse, parcel locker, automobile reading lamp. car seat belts, fingerprint door lock, cup warmer coaster, sweeping robot, portable air pump, etc.
Micro switch KW10 is small in size and compact in structure, which is a miniature micro switch. It has a micro contact gap and a tiny operation travel, and can realize the on-off situation of the circuit with high sensitivity. KW10 micro switch has three types of circuit codes: SPDT type, SPST-NO type, and SPST-NC type. It is also equipped with a wide range of wiring terminals and a variety of levers. Stable quality and long electrical life make it applied in many fields.
Product Series: KW10 Micro Switch
Appliction: ETC, mouse, parcel locker, automobile reading lamp. car seat belts, fingerprint door lock, cup warmer coaster, sweeping robot, portable air pump, etc.
Micro switch KW10 is small in size and compact in structure, which is a miniature micro switch. It has a micro contact gap and a tiny operation travel, and can realize the on-off situation of the circuit with high sensitivity. KW10 micro switch has three types of circuit codes: SPDT type, SPST-NO type, and SPST-NC type. It is also equipped with a wide range of wiring terminals and a variety of levers. Stable quality and long electrical life make it applied in many fields.
Product Series: KW10 Micro Switch
Appliction: ETC, mouse, parcel locker, automobile reading lamp. car seat belts, fingerprint door lock, cup warmer coaster, sweeping robot, portable air pump, etc.
Micro switch KW10 is small in size and compact in structure, which is a miniature micro switch. It has a micro contact gap and a tiny operation travel, and can realize the on-off situation of the circuit with high sensitivity. KW10 micro switch has three types of circuit codes: SPDT type, SPST-NO type, and SPST-NC type. It is also equipped with a wide range of wiring terminals and a variety of levers. Stable quality and long electrical life make it applied in many fields.
Product Series: KW10 Micro Switch
Appliction: ETC, mouse, parcel locker, automobile reading lamp. car seat belts, fingerprint door lock, cup warmer coaster, sweeping robot, portable air pump, etc.
| Rated Load | DC30V 0.1A |
| Temperature | -10~60℃ |
| Operating Force | ≤200gf |
| Circuit | SPDT/SPST NO/SPST NC |
| Contact Resistance | ≤500mΩ |
| Insulation Resistance | ≥100MΩ（DC500V） |
| Withstand Voltage | ≥100VAC |
| Protection Level | NO |
| Electrical Life | ≥10,000 cycles |
| Mechanical Life | ≥500,000cycles |
| Certification | RoHS |
