40T85 Waterproof Micro Switch Molds with Metal Lever

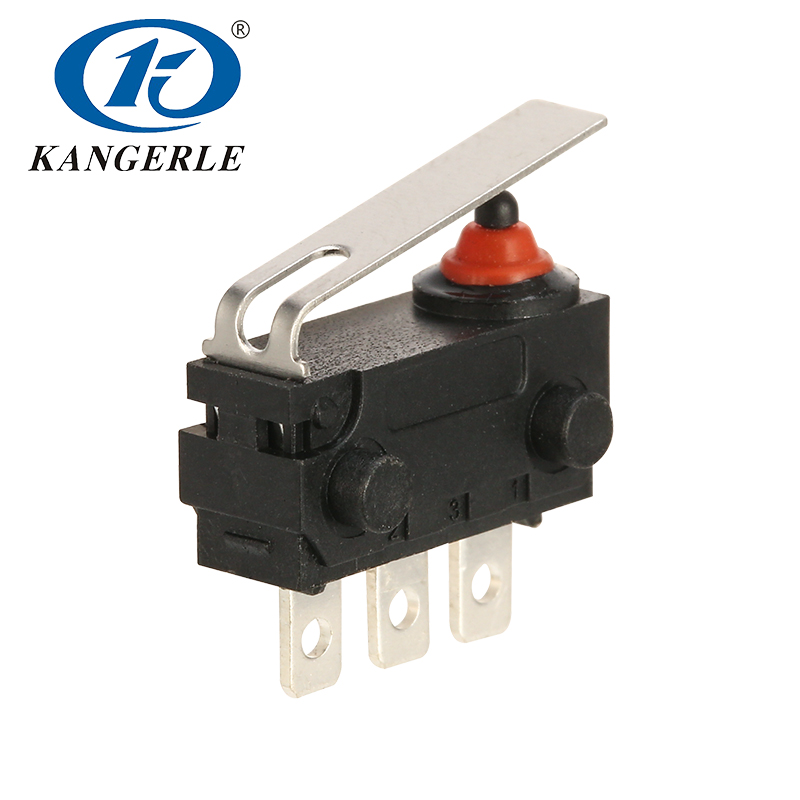

KW2-1A-2A-B6 is an IP67 waterproof momentary micro switch with a straight lever. It is also equipped with 3 solder terminals and 2 posts on its right side. With high-quality raw material and special design, it can still operate well at -40~85℃.  KW2 series IP67 micro switch can be used in vehicles, outdoor equipment, industrial controllers. Customization could be available.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

40T85 Waterproof Micro Switch Molds with Metal Lever

KW2-1A-2A-B6 is an IP67 waterproof momentary micro switch with a straight lever. It is also equipped with 3 solder terminals and 2 posts on its right side. With high-quality raw material and special design, it can still operate well at -40~85℃.  KW2 series IP67 micro switch can be used in vehicles, outdoor equipment, industrial controllers. Customization could be available.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

40T85 Waterproof Micro Switch Molds with Metal Lever

KW2-1A-2A-B6 is an IP67 waterproof momentary micro switch with a straight lever. It is also equipped with 3 solder terminals and 2 posts on its right side. With high-quality raw material and special design, it can still operate well at -40~85℃.  KW2 series IP67 micro switch can be used in vehicles, outdoor equipment, industrial controllers. Customization could be available.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

40T85 Waterproof Micro Switch Molds with Metal Lever

KW2-1A-2A-B6 is an IP67 waterproof momentary micro switch with a straight lever. It is also equipped with 3 solder terminals and 2 posts on its right side. With high-quality raw material and special design, it can still operate well at -40~85℃.  KW2 series IP67 micro switch can be used in vehicles, outdoor equipment, industrial controllers. Customization could be available.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

PRODUCT DETAIL

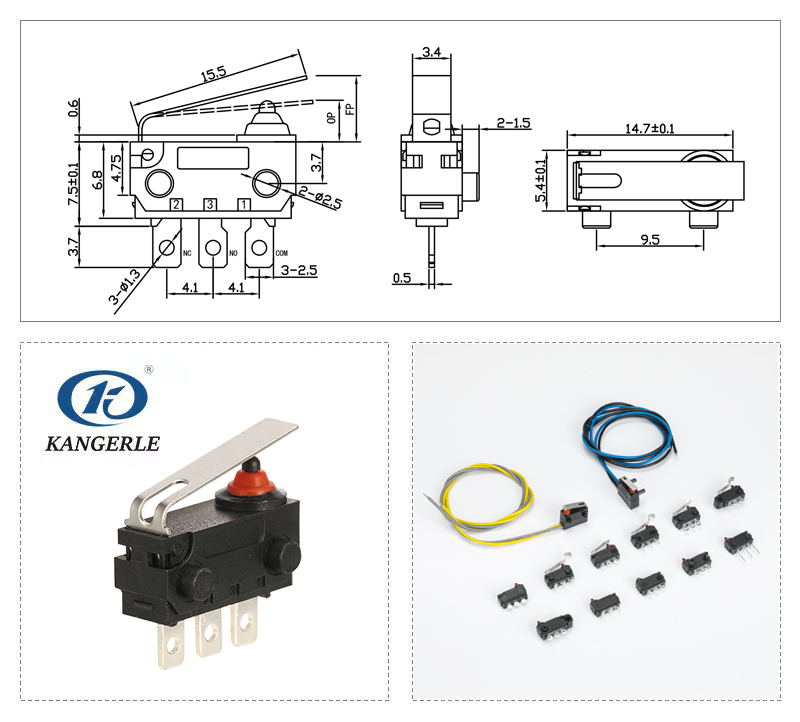

40T85 Waterproof Micro Switch Molds with Metal Lever插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
