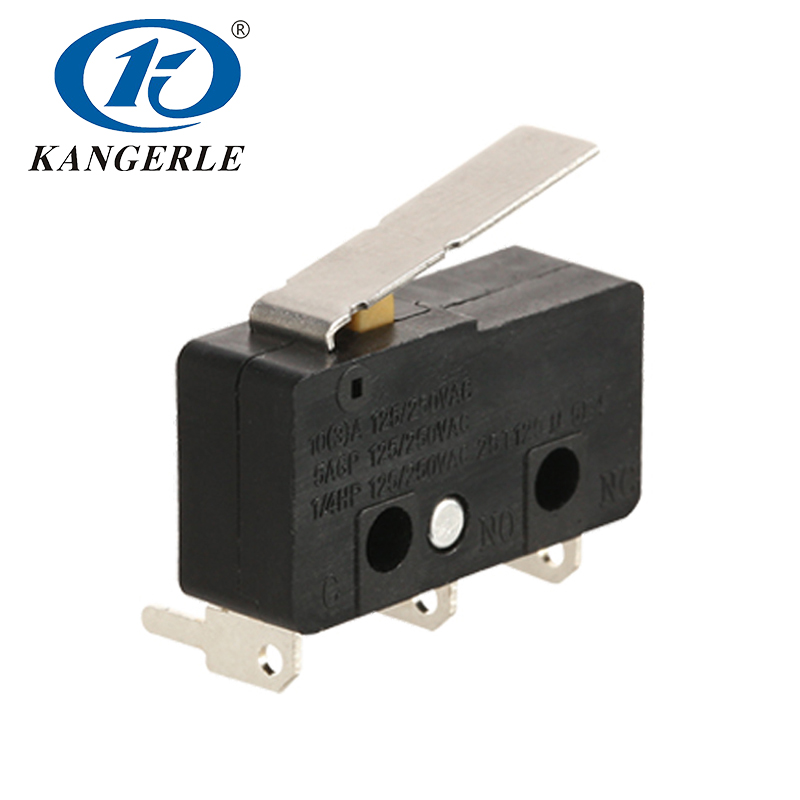

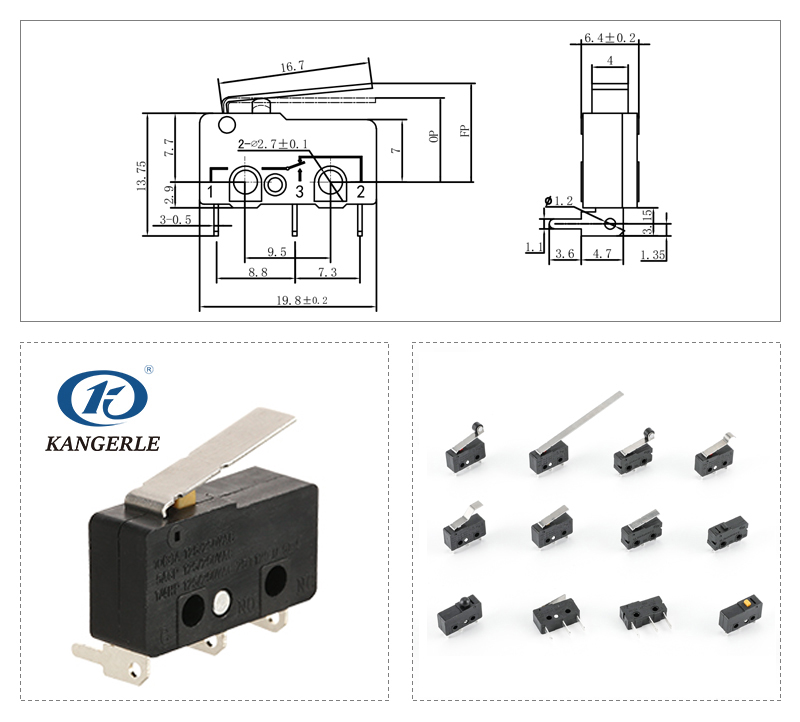

Featuring PCB pins and a compact design, this snap action micro switch KW12-5A-2D is ideal for direct PCB mounting. It operates over a wide temperature range and is available in SPST-NO and SPST-NC models, suitable for various home appliance and consumer electronics applications.
Product Series: KW12 Micro Switch
Appliction: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
Featuring PCB pins and a compact design, this snap action micro switch KW12-5A-2D is ideal for direct PCB mounting. It operates over a wide temperature range and is available in SPST-NO and SPST-NC models, suitable for various home appliance and consumer electronics applications.
Product Series: KW12 Micro Switch
Appliction: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
Featuring PCB pins and a compact design, this snap action micro switch KW12-5A-2D is ideal for direct PCB mounting. It operates over a wide temperature range and is available in SPST-NO and SPST-NC models, suitable for various home appliance and consumer electronics applications.
Product Series: KW12 Micro Switch
Appliction: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
Featuring PCB pins and a compact design, this snap action micro switch KW12-5A-2D is ideal for direct PCB mounting. It operates over a wide temperature range and is available in SPST-NO and SPST-NC models, suitable for various home appliance and consumer electronics applications.
Product Series: KW12 Micro Switch
Appliction: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.
| Rated Load | 0.1-10A 125/250VAC；0.1-5A 36VDC |
| Temperature | 25T125 |
| Operating Force | 170±30gf |
| Terminal Type | solder terminal/110# quick-connect terminal/PCB terminal … |

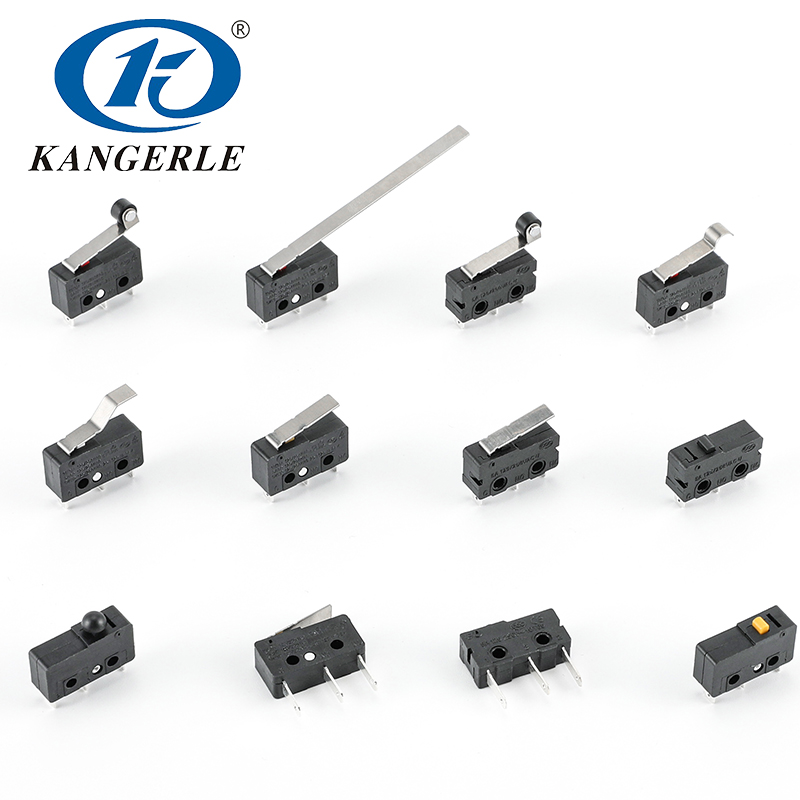

| Lever Type | no lever/short lever/middle lever/long lever/arc lever/roller lever… |
| Circuit | SPDT/SPST NO/SPST NC |
| Operating Speed | 0.1mm-1m/s |
| Operating Frequency | mechanical 60 cycles/min；electrical 15 cycles/min |
| Contact Resistance | ≤50mΩ (initial value) |
| Insulation Resistance | ≥100MΩ(500VDC,1min) |
| Withstand Voltage | ≥1500VAC,50/60HZ,1min |
| Electrical Life | ≥10,000/50,000 times |
| Mechanical Life | ≥1,000,000 times |
| Certification | UL/TUV/CQC/CE |
